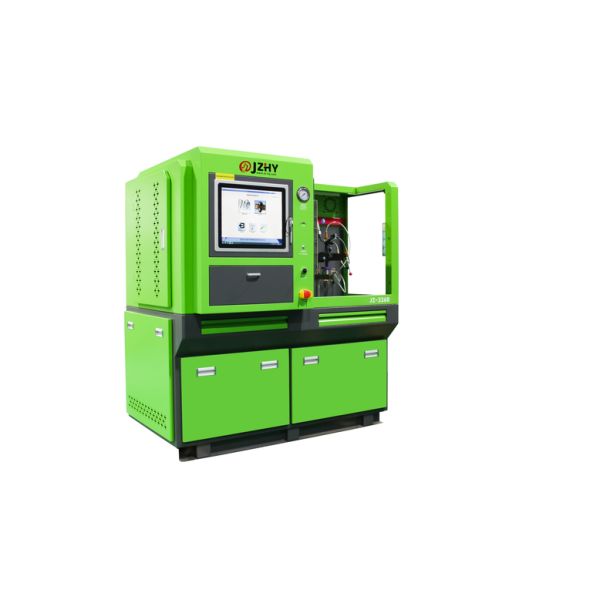

JZ-326B Higher Pressure Common Rail Pizeo Fuel 4 Pin Injector Diagnostic Test Bench

Brand Name : JZHY

Model Number : JZ-206

Certification : CE / ISO

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100sets per Month

Delivery Time : 7-10 Days

Packaging Details : Wood Density Board

Support : OEM/ODM

Contact Now

JZ-326B Common Rail Pizeo Fuel 4 Pin Injector Machine Test Bench

Standard Functions:

  • Test common rail injectors
  • Test the piezo fuel injectors
  • IQA code generation
  • Fuel tank oil level lower limit alarm
  • Equipped multiple high-precision filters
  • Test oil automatic heating/cooling control
  • Real-time display injection/return curves


Optional Functions:

  • Test the 4-pin injector
  • Test smart injector
  • injector QR code
  • VDO-IIC coding
  • C2i, C3i coding
  • piezo IMA, ISA coding

Technical Parameters
Output 5.5 KW
Speed 0 - 2700 RPM
Speed Control Mode Frequency Converter
Power 380V AC 3-Phase-4-Wire
Cooling System Air Cooling (2 Fan Radiators)
Nozzle Sensor Gear Flow Sensor
Rail Pressure 0-2700 Bar
Rail Pressure Precision ±5 Bar
Sensor Range 0.008-2L/min
Oil Tank Volume 20L Filtration Accuracy: <5µm
Fuel Temperature 40±2°C
Filter Precision < 5µm
Noise level < 85 dB
ECU Internal Boost 0-200 VDC (Max)
Machine Dimension 1450*1050*1740 mm
Packing Dimension 1550*1200*1740 mm
Net Weight 386kg
Gross Weight 416KG
